| Understanding Natural Gas Regulators |
|
If natural gas regulators fail, they can leak high-pressure gas, presenting a risk of fire or explosion. Therefore, it’s important that firefighters understand the critical role that regulators play in natural gas service meter assemblies. |
Earn a Certificate of Completion in natural gas safety FREE on the First Responder Beware® website.
|
|
|
|
|

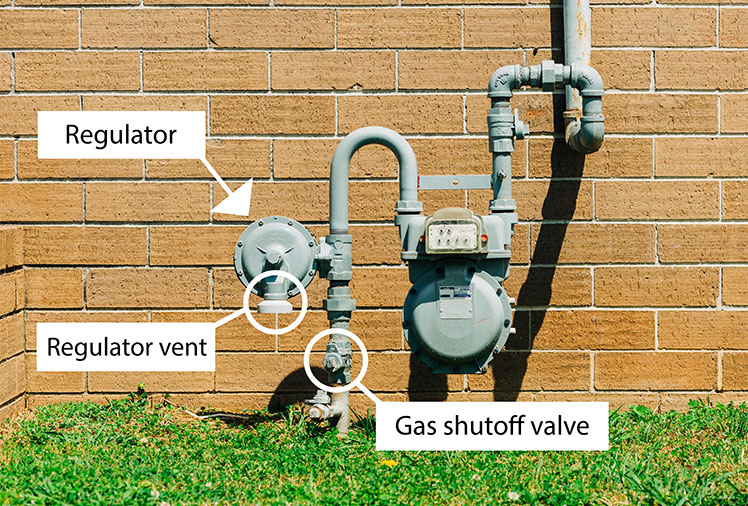

When they are present, regulators are positioned on the high-pressure service lateral gas lines that deliver gas to homes. They are located between the service shutoff valve and the meter and may be inside or outside the building or residence. Functioning much like the pressure regulator on a firefighter’s self-contained breathing apparatus, a regulator reduces the pressure of the gas so it can be used by the appliances and equipment inside the building. |
Typical residential appliances and water heaters require gas pressure of just 0.25 psi. If there is no regulator present on a gas meter assembly, that means the service lateral is supplying gas at the low pressure that appliances can use. |
Responding to a Malfunctioning Regulator |
A malfunctioning regulator can produce a serious ignition hazard, so all regulators have piping that vents high-pressure gas if the regulator fails. If the meter and regulator are located inside the building, this piping vents to the outside. (All regulator vents must be kept clear of snow, ice and debris at all times to ensure safe operation.) |
The shutoff valve, located on the high-pressure piping coming out of the ground before the meter, can be used to stop the supply of gas if the regulator malfunctions. Once closed, it prevents high-pressure gas from entering the building’s internal gas piping. |
| The high-pressure shutoff valve must be closed manually. To close it, turn it a quarter-turn so that the valve indicator is perpendicular, or crosswise, to the piping. Only close this or any other gas service valve if you have been properly trained to do so and you have the proper tool to operate the valve. Inform NIPSCO of the precise location of any valve you have closed. Do NOT reopen the valve under any circumstances, as only utility personnel may restore gas service. |
| Remember: Only shut off gas at the meter or appliance supply line. Never try to operate underground natural gas pipeline valves or relief vents. |
| Would You Like to Know More? |
| Additional utility safety tips, case studies, instructional videos and educational tools can all be found, at no charge to you, on NIPSCO's First Responder Beware website. |
|
